Solving Calculus Problems With Linear Algebra

Posted on Jan 21, 2024

Introduction

The other day, while doom-scrolling youtube, I came across a video from Michael Penn about finding an extremely high-order derivative using Linear Algebra to avoid the bulk of what the work would otherwise entail.

The problem being considered in the video was:

Given $f(x) = e^{2x}\sin{3x}$
Find $f^{(3030)}(0)$

Solving the problem

The approach taken to solve this problem is given as follows.

Consider the following first few derivatives of f:

$f’(x) = \frac{d}{dx}[e^{2x}]\sin{3x} + \frac{d}{dx}[\sin{3x}]e^{2x}$ $ = 2e^{2x}\sin{3x} + 3e^{2x}\cos{3x}$

$f’’(x) = \frac{d}{dx}f’(x) = 2\frac{d}{dx}[e^{2x}]\sin{3x} + 2\frac{d}{dx}[\sin{3x}]e^{2x} + 3\frac{d}{dx}[e^{2x}]\cos{3x} + 3\frac{d}{dx}[\cos{3x}]e^{2x}$

$\ \ \ \ \ \ \ \ \ \ = 4e^{2x}\sin{3x} + 6e^{2x}\cos{3x} + 6e^{2x}\cos{3x} - 9e^{2x}\sin{3x}$

$\ \ \ \ \ \ \ \ \ \ = -5e^{2x}\sin{3x} + 12e^{2x}\cos{3x}$

If you don’t see the pattern, do this a few more times. What you’ll notice is that all functions that can be produced by differentiation are of the form:

$ae^{2x}\sin{3x} + be^{2x}\cos{3x}$ for some $a,b \in \mathbf{R}$

Moreover, the set of all as and bs satisfying the above lie in the span of $e^{2x}\sin{3x}$ and $e^{2x}\cos{3x}$.

So we define a vector space $V = \text{span} \{ e^{2x}\sin{3x}, e^{2x}\cos{3x}\}$

The key insight here is that, because all derivatives of $f(x)$ are of the form $ae^{2x}\sin{3x} + be^{2x}\cos{3x}$, the only important information here is the choice of $a$ and $b$! This means we don’t lose any information about the derivative by representing it as a list (vector) of those two coefficients.

And we create a map called $T : V \rightarrow \mathbf{R}^2$ where $e^{2x}\sin{3x} \stackrel{T}{\mapsto}$ $ \begin{bmatrix} 1 \cr 0 \end{bmatrix}$ and $ e^{2x}\cos{3x} \stackrel{T}{\mapsto} \begin{bmatrix} 0 \cr 1 \end{bmatrix}$.

So $(T \circ f)(x) = (1, 0) \in \mathbf{R}^2$

$(T \circ f’)(x) = (2, 3) \in \mathbf{R}^2$

$(T \circ f’’)(x) = (-4, 12) \in \mathbf{R}^2$

Now we want a transformation D which mimics, in $\mathbf{R}^2$, the derivative operator in $V$.

As can be seen above from choice of basis and $f’$,

$D\begin{bmatrix} 1 \\ 0 \end{bmatrix} = \begin{bmatrix} 2 \\ 3 \end{bmatrix}$

Also, $D(0, 1)$ corresponds to $\frac{d}{dx}e^{2x}\cos{3x} = 2e^{2x}\cos{3x} - 3e^{2x}\sin{3x}$ $ = -3e^{2x}\sin{3x} + 2e^{2x}\cos{3x}$

Thus,

$D\begin{bmatrix} 0 \\ 1 \end{bmatrix} = \begin{bmatrix} -3 \\ 2 \end{bmatrix}$

Therefore,

$D = \begin{bmatrix} 2 & -3 \\ 3 & 2 \end{bmatrix}$

is the transformation in our constructed vector space which encodes the derivative in $\mathbf{R}^2$.

Just to verify, let’s use $D$ to calculate the derivative of $f’$.

$T(f') = \begin{bmatrix} 2 \\ 3 \end{bmatrix} \in \mathbf{R}^2$

$(DT)f' = D(T(f')) = D \begin{bmatrix} 2 \\ 3 \end{bmatrix} = \begin{bmatrix} 2 & -3 \\ 3 & 2 \end{bmatrix} \begin{bmatrix} 2 \\ 3 \end{bmatrix} = \begin{bmatrix} 2(2) - 3(3) \\ 3(2) + 2(3) \end{bmatrix} = \begin{bmatrix} -5 \\ 12 \end{bmatrix}$

And

$T^{-1} \begin{bmatrix} -5 \\ 12 \end{bmatrix} = T^{-1}(-5i + 12 j) = -5e^{2x}\sin{3x} + 12e^{3x}\cos{3x} = f''(x)$

It seems to be working! Cool!

Notice that $\frac{d}{dx}^{(3030)}$ must correspond to $D^{3030}$, however, this matrix power computation is just as hard to compute. So we’d like to map into a space where the transformation represented by our $D$ can be written in another basis in such a way that the transformation w.r.t. that new basis is a diagonal matrix since:

$\begin{bmatrix} a & 0 \\ 0 & b \end{bmatrix}^n = \begin{bmatrix} a^n & 0 \\ 0 & b^n \end{bmatrix}$ for any choice of $n \in \mathbf{N}$

How can we do this? By finding the eigenvectors of our matrix $D$ and doing a change of basis to those eigenvectors!

Characteristic Equation: $\det(D - \lambda I) = 0$

$A = D - \lambda I = \begin{bmatrix} 2 - \lambda & -3 \\ 3 & 2 - \lambda \end{bmatrix}$

$\det(A) = (2 - \lambda)^2 + 9 = 0$

$\implies (2 - \lambda)^2 = -9$

$\implies 2 - \lambda = \pm 3i$

$\implies \lambda = 2 \mp 3i$

$\lambda_1 = 2 - 3i$ and $\lambda_2 = 2 + 3i$ are our eigenvalues

Using these eigenvalues, we can find eigenvectors $v_1, v_2$ as follows:

$(D - \lambda_1 I)v_1 = 0$ and $(D - \lambda_2 I)v_2 = 0$

$(D - \lambda_1 I)v_1 = \begin{bmatrix} 2 - \lambda_1 & -3 \\ 3 & 2 - \lambda_1 \end{bmatrix}v_1 = \begin{bmatrix} 3i & -3 \\ 3 & 3i \end{bmatrix}v_1 = B_1v_1 = 0$

$(D - \lambda_1 I)v_1 = \begin{bmatrix} 2 - \lambda_2 & -3 \\ 3 & 2 - \lambda_2 \end{bmatrix}v_1 = \begin{bmatrix} -3i & -3 \\ 3 & -3i \end{bmatrix}v_1 = B_2v_2 = 0$

$B_1v_1 = 0$ can be solved by gaussian elimatination and back substitution.

$B_1 \stackrel{R_2 := R_2- \frac{1/i}R_1}{\longrightarrow} \begin{bmatrix} 3i & -3 \\ 0 & -3i-\frac{3}{i} \end{bmatrix} = \begin{bmatrix} 3i & -3 \\ 0 & \frac{-3i^2-3}{i} \end{bmatrix} = \begin{bmatrix} 3i & -3 \\ 0 & -3\frac{i^2+1}{i} \end{bmatrix} = \begin{bmatrix} 3i & -3 \\ 0 & 0 \end{bmatrix} = U_1$

and $U_1v_1 \implies 3iv_1 - 3v_2 = 0 \implies v_1 = -iv_2$

This means there are infinite eigenvectors with eigenvalue $\lambda_1$ and one such vector is $(1, i)$.

$B_2v_2 = 0$ can be solved the same way to get an eigenvector $(1, -i)$. We can know this without doing the computation since complex eigenvectors come in conjugate pairs.

We’ll make a slight abuse of language for the rest of the article and say that:

$\begin{bmatrix} 1 \\ i \end{bmatrix}, \begin{bmatrix} 1 \\ -i \end{bmatrix}$

are our eigenvectors corresponding to $\lambda_1 = 2 - 3i$ and $\lambda_2 = 2 + 3i$, respectively. Notice that we are abusing language here by talking about the eigenvectors despite the fact that each eigenvalue has an infinite family of eigenvectors.

Now, we’d like a transformation $L : \mathbf{R}^2 \rightarrow \overline{\mathbf{R}}^2$ where $(1, i) \stackrel{L}{\mapsto} (1, 0) $ and $(1, -i) \stackrel{L}{\mapsto} (0, 1)$.

This map’s inverse, $L^{-1}$, is clearly:

$L^{-1} = \begin{bmatrix} 1 & 1 \\ i & -i \end{bmatrix}$

Q: Why is this map $L^{-1}$ and not $L$?

I struggled with this for a while, causing me to finish this post with a wrong answer two seperate times. The key to understanding this is to realize the above linear map transforms the basis vectors in $\overline{\mathbf{R}}^2$ into eigenvectors in $\mathbf{R}^2$.

Finally, its inverse ($L$) can be found with the 2-by-2 inverse formula:

$\det \begin{bmatrix} a & b \\ c & d \end{bmatrix} = \frac{1}{\det \begin{bmatrix} a & b \\ c & d \end{bmatrix}} \begin{bmatrix} d & -b \\ -c & a \end{bmatrix}$

Thus,

$L = \frac{1}{-i - i} \begin{bmatrix} -i & -1 \\ -i & 1 \end{bmatrix} = \frac{i}{2} \begin{bmatrix} -i & -1 \\ -i & 1 \end{bmatrix} = \begin{bmatrix} \frac{1}{2} & \frac{-i}{2} \\ \frac{1}{2} & \frac{i}{2} \end{bmatrix}$

is our inverse transformation from $\overline{\mathbf{R}}^2$ to $\mathbf{R}^2$.

Now, the natural question to ask is: How do we encode D in this eigenbasis?

Let’s call this encoding $\overline{D}$ for now.

Notice, the easiest way to find this encoded D in $\overline{\mathbf{R}}^2$, is to simply use D itself.

i.e. by going back to $\mathbf{R}^2$ from $\overline{\mathbf{R}}^2$ by $L^{-1}$, apply $D$ to get the derivative in $\mathbf{R}^2$, and finally go to $\overline{\mathbf{R}}^2$ via $L$.

This looks like: $\overline{D} = L D L^{-1}$.

Since we have $L$, $L^{-1}$, and $D$, we could just do this matrix multiplication to get our $\overline{\mathbf{R}}^2$, however, there’s an easier way. (It’s also important to note that we would like to keep the matrices seperate as it will later allow us to use the special form of a matrix power for a diagonal matrix).

Notice, that $\overline{D} = L D L^{-1} \iff D = L^{-1} \overline{D} L$.

Since L is our matrix of eigenvectors, $\overline{D} = \Lambda$ where $\Lambda$ is our matrix of eigenvalues along the diagonal in the order $\lambda_2, \lambda_1$ since we switched them around when constructing our map L.

Hence, $D = L^{-1} \Lambda L$ where

$\Lambda = \begin{bmatrix} \lambda_2 & 0 \\ 0 & \lambda_1 \end{bmatrix} = \begin{bmatrix} 2 + 3i & 0 \\ 0 & 2 - 3i \end{bmatrix}$.

This is awesome. We’re very close to the finish line now.

The last problem we must deal with is the fact that $D^n = (L^{-1} \Lambda L)^n$.

This one is rather simple. Notice that:

$(L^{-1} \Lambda L)^n = (L^{-1} \Lambda L)(L^{-1} \Lambda L)(L^{-1} \Lambda L)…(L^{-1} \Lambda L)$ n times

Using the property of associativity of matrix multiplication, we can regroup these terms.

$(L^{-1} \Lambda L)(L^{-1} \Lambda L)(L^{-1} \Lambda L)…(L^{-1} \Lambda L) = L^{-1} \Lambda (LL^{-1}) \Lambda (LL^{-1}) … \Lambda (LL^{-1}) L = L^{-1} \Lambda I \Lambda I \Lambda I … \Lambda I L$ n times.

which, by the fact that $I$ is the multiplicative identity, yields $L^{-1} \Lambda^n L$.

Thus, $(L^{-1} \Lambda L)^n = L^{-1} \Lambda^n L$. and we finally get our simplified derivative $D^n = L^{-1} \Lambda^n L$

The Big Picture

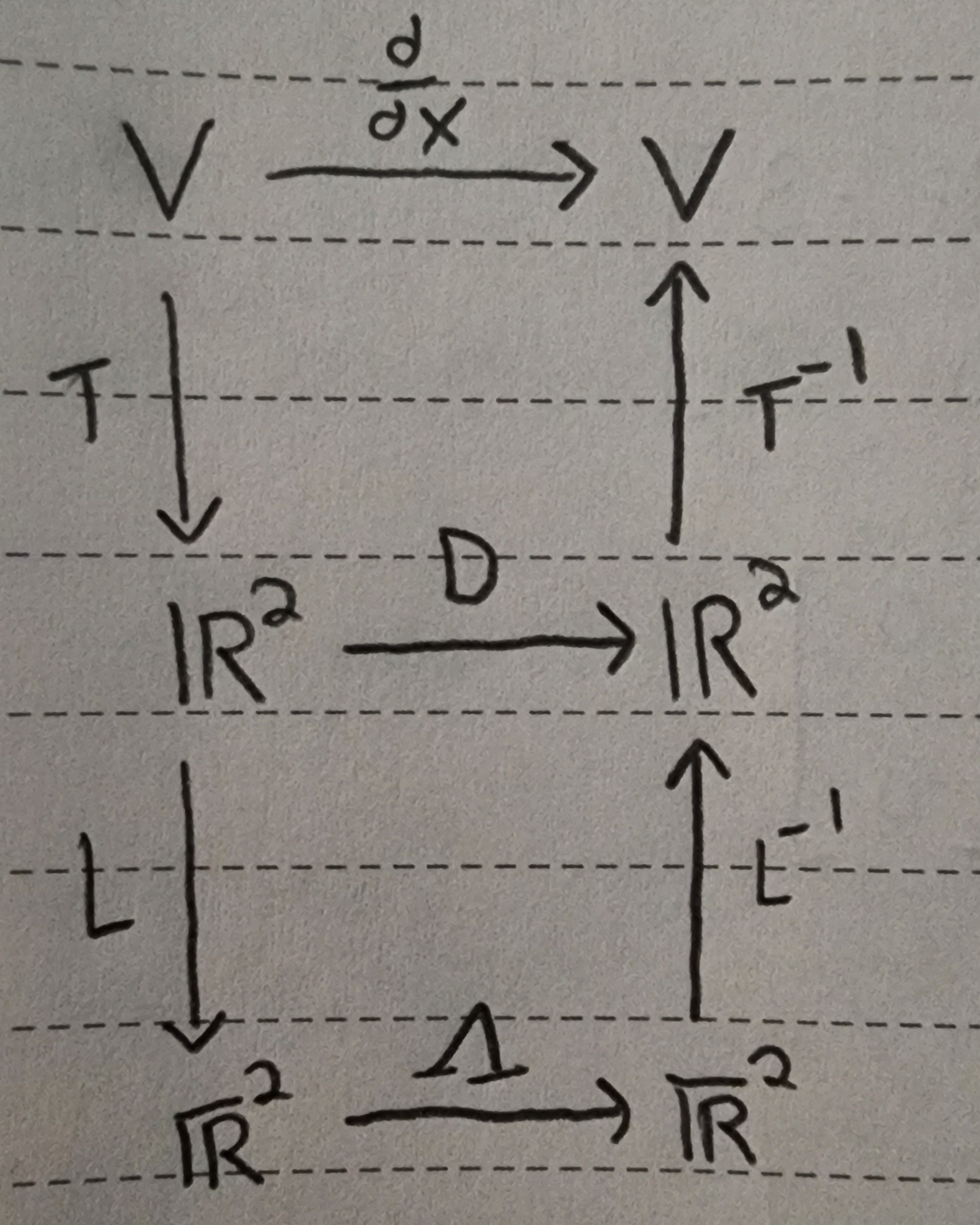

The above picture is what is known as a commutative diagram. What it shows is the path you must take to traverse the spaces we constructed in the last section.

For example, given some $g \in V$, we can find it’s derivative by:

$g’ = T^{-1} D T g$
or $g’ = T^{-1} L^{-1} \Lambda L T g$
or even $g’ = T^{-1} L^{-1} \Lambda L D^{-1} L^{-1} \Lambda L T g$, but this is a silly path.

Remark: It should be noted that these “paths” are to be read right-to-left as the multiplication of linear maps is function composition.

Getting the Answer

The problem asked:

Given $f(x) = e^{2x}\sin{3x}$
Find $f^{(3030)}(0)$

And by the work we did in the previous section, we have that $\frac{d^n}{dx^n} = (T^{-1} D T)^n = (T^{-1} L^{-1} \Lambda L T)^n = T^{-1} L^{-1} \Lambda^n L T$ is our nth derivative operator.

So let’s apply the given function $f(x)$ to this giant operator.

$f^{(3030)}(x) = T^{-1} L^{-1} \Lambda^{3030} L T f(x) = T^{-1} L^{-1} \Lambda^{3030} L T (e^{2x}\sin{3x}) = T^{-1} L^{-1} \Lambda^{3030} L (1, 0)$

$ = T^{-1} L^{-1} \begin{bmatrix} 2 - 3i & 0 \\ 0 & 2 + 3i \end{bmatrix}^{3030} \begin{bmatrix} \frac{1}{2} & \frac{-i}{2} \\ \frac{1}{2} & \frac{i}{2} \end{bmatrix} \begin{bmatrix} 1 \\ 0 \end{bmatrix}$

$ = T^{-1} L^{-1} \begin{bmatrix} 2 - 3i & 0 \\ 0 & 2 + 3i \end{bmatrix}^{3030} \begin{bmatrix} \frac{1}{2} \\ \frac{1}{2} \end{bmatrix}$

$ = T^{-1} L^{-1} \begin{bmatrix} (2 - 3i)^{3030} & 0 \\ 0 & (2 + 3i)^{3030} \end{bmatrix} \begin{bmatrix} \frac{1}{2} \\ \frac{1}{2} \end{bmatrix}$

$ = T^{-1} L^{-1} \begin{bmatrix} \frac{1}{2}(2 - 3i)^{3030} \\ \frac{1}{2}(2 + 3i)^{3030} \end{bmatrix}$

$ = T^{-1} \begin{bmatrix} 1 & 1 \\ i & -i \end{bmatrix} \begin{bmatrix} \frac{1}{2}(2 - 3i)^{3030} \\ \frac{1}{2}(2 + 3i)^{3030} \end{bmatrix}$

$ = T^{-1} \begin{bmatrix} \frac{1}{2} (2 - 3i)^{3030} + \frac{1}{2}(2 + 3i)^{3030} \\ \frac{i}{2}(2 - 3i)^{3030} + \frac{-i}{2}(2 + 3i)^{3030} \end{bmatrix}$

$ = [\frac{1}{2} (2 - 3i)^{3030} + \frac{1}{2}(2 + 3i)^{3030}]e^{2x}\sin{3x} + [\frac{1}{2}(2 - 3i)^{3030} - \frac{1}{2}(2 + 3i)^{3030}]e^{2x}\cos{3x}$

$ = f^{(3030)}(x)$

Finally, we get our answer by setting $n$ to 3030 and $x$ to 0.

$f^{(3030)}(0) = [\frac{1}{2} (2 - 3i)^{3030} + \frac{1}{2}(2 + 3i)^{3030}]e^{2(0)}\sin{3(0)} + [\frac{1}{2}(2 - 3i)^{3030} - \frac{1}{2}(2 + 3i)^{3030}]e^{2(0)}\cos{3(0)}$ $ = \frac{1}{2}(2 - 3i)^{3030} - \frac{1}{2}(2 + 3i)^{3030}$.

Thus, $f^{(3030)}(0) = \frac{1}{2}(2 - 3i)^{3030} - \frac{1}{2}(2 + 3i)^{3030} \in \mathbf{R}$ is our answer.

Conclusion

The reason this problem is so cool is that we were able to take a very computationally hard problem and move it into a new space where it is equivalent but computationally very easy to compute.

This is a common theme in higher-level mathematics. Often we can solve hard problems by creating new spaces with nice properties that neatly encode our hard problem from the original space.

Once you read through this and understand the derivation, I highly recommend that you watch the video and try doing the problem yourself. After having watched the video I thought I understood everything, but it wasn’t until I did the problem myself over dinner that I was able to work out some subtle misunderstandings I didn’t realize I had.
