Programmatic Math Visualizations
Introduction
When studying math, I always try to find good geometric intuitions for whatever concept I’m trying to learn. It’s not always possible, especially when dealing with higher-dimensional spaces, but when you can create simple, concrete examples in easier-to-visualize spaces, the intuition you gain makes the generalized form much more clear.
In this post I want to discuss some tools I use to play around with the concepts from my lectures and visualize what’s happening.
Plotting Libraries
My favorite programming language is Common Lisp. It’s an extremely flexible language that lets me do what I want to do exactly how I want to do it. More importantly, it’s just a lot of fun to write code with.
In this post I’ll be showing three libraries I use regularly, namely,
- ls-stat/plot (Common Lisp)
- eazy-gnuplot (Common Lisp)
- Manim CE (Python)
The third library was originally developed by 3Blue1Brown, a well-known math youtuber, and is written in Python. I haven’t got around to creating a nice set of bindings to this library for Common Lisp, so when using this library I still use Python like everyone else. Maybe if my professors ease up on the homework this semester I’ll have time to do a full rewrite of the library in Common Lisp, but I doubt this will happen anytime soon.
I’ll assume you know the basics of Common Lisp for the first two libraries.
ls-stat/plot
Documentation for this library can be found here.
This was the first plotting library I used, and I still use it whenever I want to graph something in $\mathbf{R}^2$.
Getting Started
(ql:quickload :lisp-stat)
(in-package :ls-user)
(ql:quickload :plot/vega)
Example Usage
The first example we’ll consider is plotting the function $\sin(\frac{1}{x})$. I first came across this weird function in my Analysis II course, where we talked about how it oscillates infinitely in an $\varepsilon$-neighborhood about the origin. No matter how small of a region around the origin you try to restrict yourself to, it’ll always have infinitely many oscillations in $[-\varepsilon, \varepsilon]$ for your choice of $\varepsilon \in \mathbf{R}^+$. Weird, right?
In any case, let’s plot the thing.
(let* ((x-values (loop for x from 0.0001 to (* 2 pi) by 0.00001 collect x)) ;; (1)
(y-values (mapcar (lambda (x)
(sin (/ 1 x)))
(x-values))) ;; (2)
(data (plist-df `(:x ,(coerce x-values 'vector)
:y ,(coerce y-values 'vector))))) ;; (3)
(plot:plot
(vega:defplot sin-of-one-over-x-plot
`(:title "x vs. sin(x)/x") ;; (4)
:data ,data
:mark :line
:width 500
:height 500
:encoding (:x (:field :x :type :quantitative)
:y (:field :y :type :quantitative)))))
(1) - We are interested in seeing what happens close to the origin, so we collect some evenly spaced values from the interval $[0.0001, 2\pi]$. Notice that we exclude 0 as $1/0$ is undefined (recall that $\forall x \in \mathbf{R},\ 0x \neq 1). The loop macro makes it easy to collect a bunch of numbers into a list. This list is bound to the symbol x-values within the let* macro.
(2) - We map the function $\sin(\frac{1}{x})$ over this list, collecting the results into a list of its own, and again bind the symbol y-values to it locally.
(3) - plist-df is a function that takes as input something called a plist. A plist is just Lisp lingo for a linked list where the elements of said list alternate in the pattern (:key1 value1 :key2 value2 …). Basically a slow dictonary. Since the plist-df expects our values to be vectors and the symbols x-values and y-values are bound to lists, we first coerce them both to vectors. The result of this function is a dataframe, which is a custom data type used in ls-stat/plot that we eventually pass to the plotter.
(3) $\wedge$ (4) - You may have noticed the weird ` symbol and some seemingly random commas in these two sections of the code. This changes how the common lisp interpreter interpretes the symbols within it. Lisp has a regular mode where lists of the form (f x y z) are interpreted to mean “call the function f with the pre-evaluated arguments x, y, and z”. In this mode, if we want the interpreter to keep a list unevalutated (maybe we’d like to symbolically manipulate the list, for example), we’d have to quote it. However, in the mode introduced by the ` symbol, the opposite happens. In this special mode, all symbols are left in their symbolic form unless proceeded by a comma, which forces their evaluation. I wanted to point this out as it’s a little strange looking. If you want to learn more about this, check out this article that talks a little bit about macros and the ` (the backquote facility).

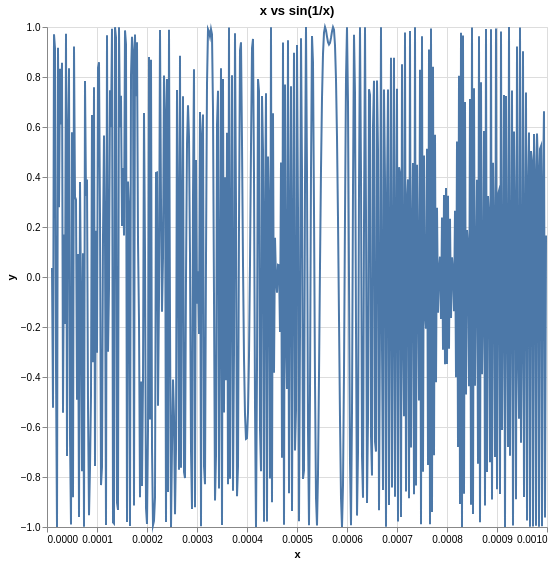

Zooming in a little bit to $[0.00001, 0.001]$, we get the sense that, as we get closer and
closer to the origin, the oscillations get more and more dense.
The plotting isn’t perfect. And if you were just looking at these static images you may conclude that there’s “pockets” of density at arbitrary sections of the graph. But the power of being able to throw together hacky plots like this is that you can play around with it, generating a bunch of graphs for a bunch of different neighborhoods. By doing so, it’s pretty easy to tell when something’s an artifact of taking discrete points and when it’s really how the graph looks.

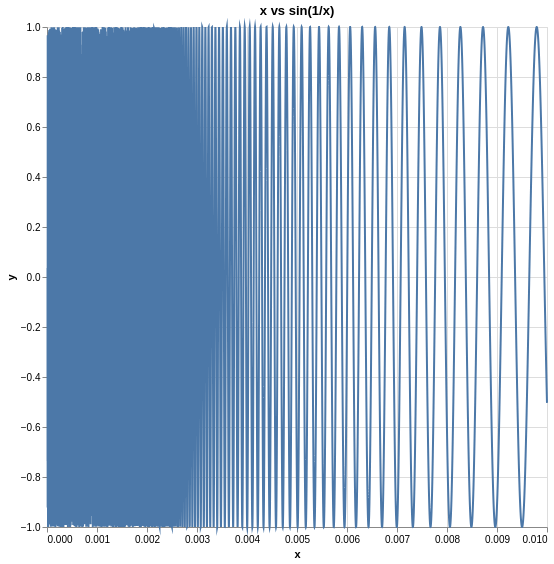

Let’s look at one more to demonstrate this. Expanding our interval to $[0.00001, 0.01]$, we see the true nature of the function.
Ah ha! It does seem to get more and more dense as we get closer to the origin after all!
Notice that in the previous graph we considered the interval $[0.00001, 0.001]$ and this time we considered the interval $[0.00001, 0.001]$. I’m showing this to make clear that you need to play around with the size of the intervals you’re graphing and the density of points in those intervals. Because we use discrete points to graph things on a computer, a lot of weird artifacts can appear. This isn’t a problem if you play around with it, but if you just generate one graph and spend a lot of time trying to understand it, you may be under a false impression w.r.t. its true nature.
eazy-gnuplot
Documentation for eazy-gnuplot can be found here.
What I like about this library is that it’s just a set of bindings to the well-known plotting framework gnuplot. So while the above documentation may not be very complete, there is a ton of resources for learning the underlying library gnuplot which is very easy to translate to eazy-gnuplot.
What I don’t like is that it requires a lot more boilerplate than ls-stat/plot, but we can easily plot 3-dimensional things with it unlike with ls-stat/plot.
eazy-gnuplot (and as such gnuplot itself) generate png images of your graphs and throw them in a local directory ./images. What does this mean? If the current working directory of the process running your code is ., then the subdirectory called images is where gnuplot will store your generated graphs.
This is different then ls-stat/plot, which uses vega-lite under the hood, which uses a browser engine like chrome to render your images.
Thus, after gnuplot generates your images, you still have to open them. Never fear, I have a little helper function which makes the workflow just as nice.
Getting Started
First, make sure you have gnuplot somewhere in your $PATH. On Gentoo, run
sudo emerge -av sci-visualization/gnuplot
You’ll also need some sort of image viewer launchable from the terminal. I like feh. To install feh on Gentoo, run
sudo emerge -av media-gfx/feh
Then you’ll need to install the eazy-gnuplot library.
(ql:quickload :eazy-gnuplot :clml.statistics :clml.utility)
(use-package :eazy-gnuplot)
Example Usage
Let’s revisit our friend $\sin(\frac{1}{x})$ using this new library.
First, we define a helper function called png-from-file which will open the png file of the graph generated by eazy-gnuplot
(defun png-from-file (f)
(uiop:run-program (list "feh" f) :output t
Now, it’s time to plot!
(define plot-sin-of-one-over-x (output)
(with-plots (s :debug nil)
(gp-setup :terminal '(pngcairo) :output output)
(gp :set :samples 1000)
(plot "sin(1/x)"))
output)
;; Using our helper function...
(png-from-file (plot-sin-of-one-over-x "images/function-plot.png"))
The above code opens up the following image in feh.
Very pretty, but we’ve spent a lot of time on $\sin(\frac{1}{x})$. Let’s move on to some 3-dimensional graph visualizations.
I like saddle surfaces, let’s plot one!
(defun plot-saddle-surface (output)
(with-plots (s :debug nil)
(gp-setup :output output :terminal '(pngcairo))
(gp-unset :key)
(gp :set :isosamples 50)
(gp :set :title "z = x^2 - y^2") ;; you can put latex in the title!
(gp :set :xrange '(-3 3))
(gp :set :yrange '(-3 3))
(gp :set :view '(29 53)) ;; phi = 53 degrees, theta = 29 degrees defines our viewpoint
(splot "x**2 - y**2")
(format s "~%replot~%")) ;; format is printf for common lisp
output)
(png-from-file (plot-saddle-surface "images/gnuplot-saddle-surface.png"))
Manim CE
Documentation for Manim CE can be found here.
Finally, we’ll look at something a little different. This library is more like animation software than a plotting library, but since it was designed specifically for making math animations, we can use it to create very nice visualizations of functions, vector fields, graphs (networks not planes), linear transformations in vector spaces, and a whole lot more.
This library uses ffmpeg to stitch together a bunch of images into a video, which is really cool because we can create animations that zoom in for a while on an object or, for example, see the flow of a vector field!
Unfortunately, it uses Python. This is a negative for me as I don’t really like the language, but that’s a topic for another post…
Getting Started
To set up the environment and install the manim library, run the following commands.
x=manim-playground
mkdir $x
cd $x
unset x
python -m venv env
source ./env/bin/activate
pip install manim
This creates a local python environment that you’ll have to activate with the
source ./env/bin/activate
command each time.
We do this when we’d like to avoid installing libraries globally. I always prefer to do this because I don’t like having more than one package manager operating in the global environment, and I already use Portage.
Example Usage
Example: Linear Transformation in a Vector Space
from manim import *
class Test(LinearTransformationScene):
def __init__(self, **kwargs):
LinearTransformationScene.__init__(
self,
include_background_plane = True,
show_basis_vectors = True,
i_hat_color = GREEN,
j_hat_color = RED,
leave_ghost_vectors = True
)
def construct(self):
rotation_matrix = [[0, -1]
[1, 0]]
self.wait(0.5)
self.apply_matrix(matrix)
self.wait(1)
Suppose your code is in a file named linearTransformation.py. To create the animation, drop back to your terminal and do the following.
manim -pqh linearTransformation.py Test
The arguments -p tells Manim to play the video after stitching everything together and the -qh argument stands for “quality high”. You can substitute -qh for -ql which will render the video in 480p rather than 1080p, which is good when developing a complicated animation.
Example: Flow of a Vector Field
from manim import *
class Flow(Scene):
def construct(self):
plane = NumberPlane()
func = lambda pos: ((pos[0] * UR + pos[1] * LEFT) - pos) / 3
stream_lines = StreamLines(func)
self.add(plane, stream_lines)
stream_lines.start_animation(warm_up=True, flow_speed=1.5)
self.wait(5)
Suppose we put that code in a file called vectorFieldFlow.py Then we run
manim -pqh vectorFieldFlow.py Flow
And we get the following animation of our vector field.
I don’t know about you, but to me this is super cool! All you have to do is modify the lambda function in the above code and you can animate the “flow” of any vector field.
This will be very helpful for animating phase spaces in my upcoming PDEs course this semester. I wish I knew about this back when I took ODEs.
Example: Saddle Surface in $\mathbf{R}^3$
class Saddle(ThreeDScene):
def construct(self):
axes = ThreeDAxes()
saddle = Surface(
lambda u, v: np.array([
u,
v,
u**2 - v**2
]),
u_range=[-3, 3],
v_range=[-3, 3],
checkerboard_colors=[RED_D, RED_E],
resolution=(15, 32)
)
self.renderer.camera.light_source.move_to(3*IN)
self.set_camera_orientation(phi=70 * DEGREES, theta = 30 * DEGREES)
self.add(axes, saddle)
self.begin_ambient_camera_rotation(90 * DEGREES / 3, about="theta")
self.wait(5)
self.stop_ambient_camera_rotation(about="theta")
self.begin_ambient_camera_rotation(90 * DEGREES / 3, about="phi")
self.wait(7)
self.stop_ambient_camera_rotation(about="phi")
self.wait(1)
After building the animation, we get the following:
Kind of a silly example, but I think this is a lot more helpful than the simple plot of the saddle surface we generated before using eazy-gnuplot.
Conclusions
All of these tools can be very useful when you’re playing around with problems and want a quick-and-dirty look into their behavior.
IMO, if you study math regularly, learning how to use these sorts of tools is invaluable.
